Concertina
Concertina razor wire and barbed wire
ADVANTAGES
Different fence systems can be designed to be incorporated with Concertina razor wire or Barbed wire post extensions “Straight, in 45° angle or Y-Arm” on the top of the fence to enhance the perimeter’s security level.
Concertina razor or Barbed wire provides additional physical security to the fence line and is also a psychological and visual deterrent for any potential thieves, trespassers, or vandals. In addition, the multiple blades on the razor wire are also designed to prevent anyone from attempting to climb the fence.
Specifications and stock types (see Technical Description)
OPTIONAL
Different Concertina razor wire blade types are available on request.
Concertina razor wire types Flat and Straight are available on request.
- Concertina razor wire Flat BTO 22 / Outside diameter 500 mm, installation length 14-15 m.
- Concertina razor wire Straight BTO 22 / Roll length 50 m or 200 m.
- Barbed wires in coated versions are available on request. Colors RAL 6005, RAL 9005,
RAL 7016
TECHNICAL DESCRIPTION / STOCK TYPES

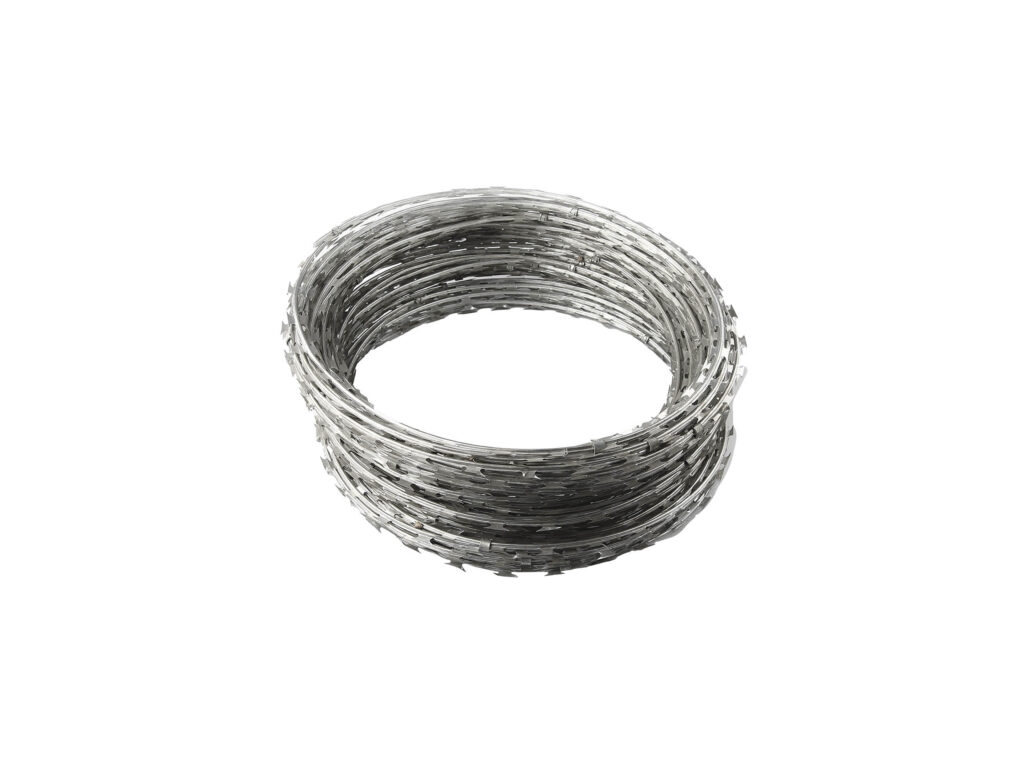

CONCERTINA RAZOR WIRE / 450 mm

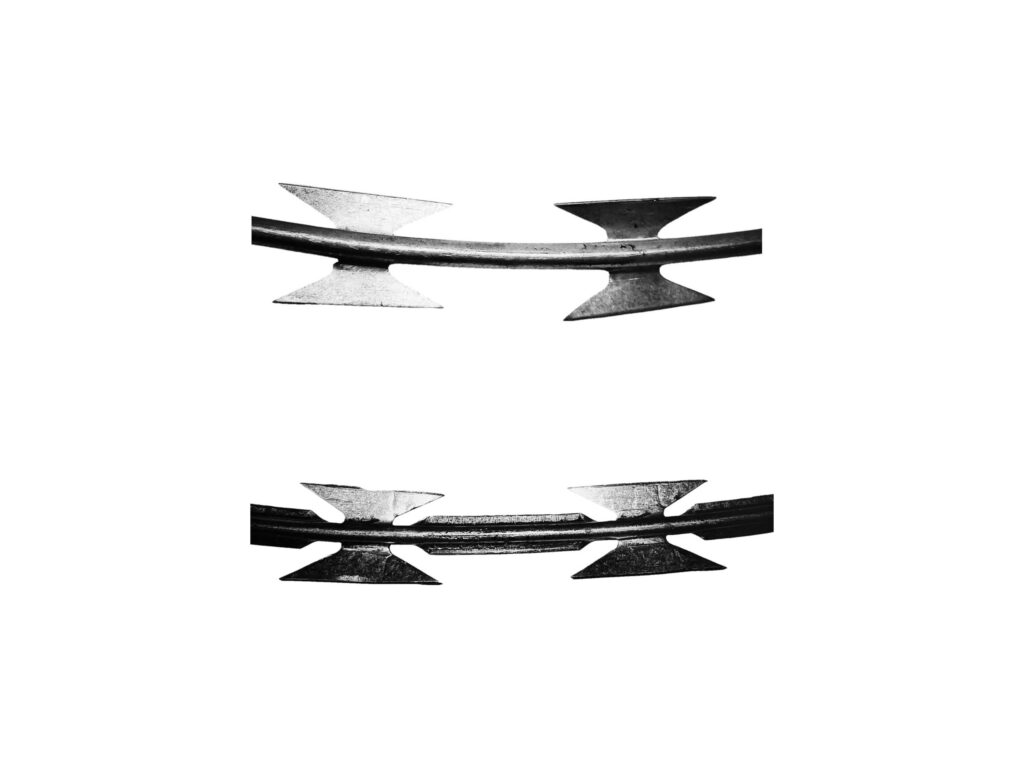

Blade type BTO 22
Outside diameter 450 mm
Spirals per coil 54
Clips 3
Support wire 2,50 mm
Blade width 17 mm
Distance between blades 53 mm
Galvanized 200 g/m2
Installation length 8-9 m
CONCERTINA RAZOR WIRE / 730 mm
Blade type BTO 22
Outside diameter 730 mm
Spirals per coil 54
Clips 5
Support wire 2,50mm
Blade width 17 mm
Distance between blades 53 mm
Galvanized 200 g/m2
Installation length 10-12 m
CONCERTINA RAZOR WIRE / 980mm
Blade type BTO 28
Outside diameter 980 mm
Spirals per coil 55
Clips 5
Support wire 2,50 mm
Blade width 15 mm
Distance between blades 45 mm
Galvanized 200 g/m2
Installation length 13-15 m

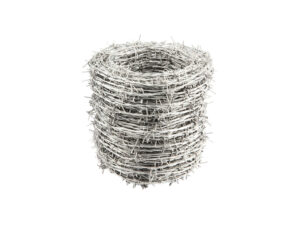

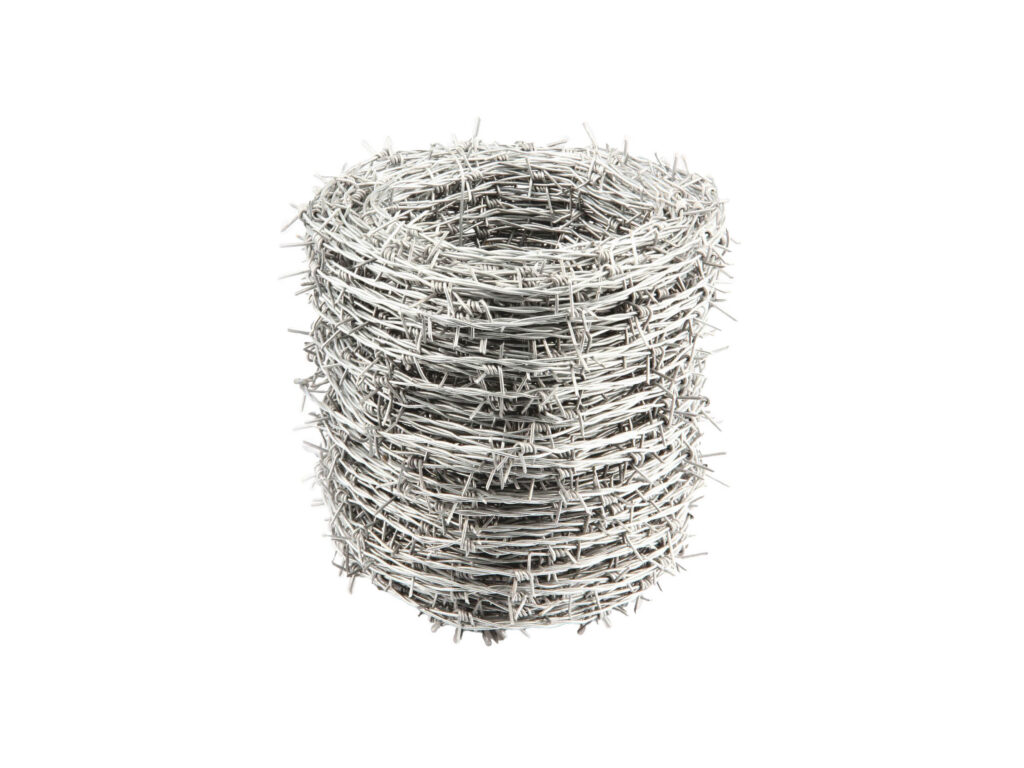

BARBED WIRE / 1,7-4-100 x 250m
Wire Diameter 1,70 mm
Barbs Wire Diameter 1,40 mm
Barb points 4 pcs
Distance between barbs 100 mm
Twisting of the wire Reverse
Roll length 250 m
Coating 95% Zinc and 5% Aluminum
ACCESSORIES
- C-clips
- Pliers for C-clips
- Cut protection gloves
- Anti-cut sleeves
OPTIONAL
- Post extension arm (Straight)
- Post extension arm (45° angle)
- Post extension arm (Y-Arm “2 x 45° Arms”)
